LEHRY OHT BENEFITS :
SYSTEM COMPONENTS :
LEHRY MAKE CONTROL VALVE
SOLENOID VALVE :-
LEHRY Heavy-duty valve offers the best features for top-of-the-line valves. Built with enough durability to handle the rigors of most residential and light commercial sites, the PGV is available in an array of configurations. For smaller landscape applications, the PGV is available in 25 mm
body configurations: globe each model is available in a non-flow control version. For larger landscape applications, the PGV comes in both 40 mm and 50 mm globe models (with flow
control). All models feature durable high-grade construction and a rugged diaphragm with
support to prevent stress failure.

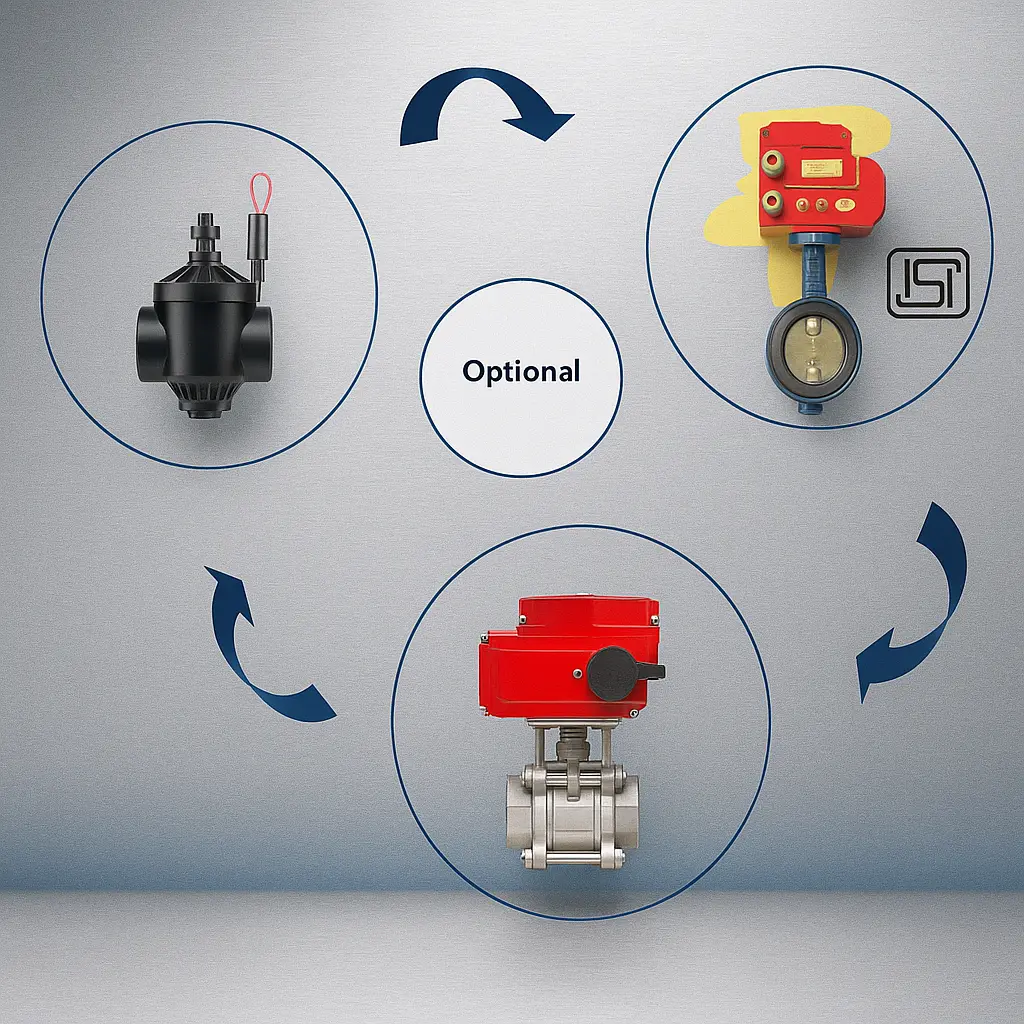

System Components :
- Sizes: Sizes: 1″ (25 mm); 1½” (40 mm); 2″ (50 mm)
- External and internal manual bleed allows quick and easy valve activation
- Double-beaded diaphragm seal design assures leak free performance
- Captive bonnet bolts provide hassle-free valve maintenance
- Encapsulated 24 VAC solenoid with captive plunger for hassle-free service
- Temperature rating: 66° C
Operation Specifications :-
Flow rate:
Recommended pressure range: 1.5 to 10 bar; 150 to 1000 KPa
Solenoid Specifications : –
LEHRY MAKE Electrical Actuated Butterfly valves are most suitable for wide range of industrial applications. These Valves can be integrated with a consistent range of actuators to create complet flow control packages. Versatile ranges of resilent seated quarter turn butterfly valves are available in various configuration and materials to match critical applications. Higher end
quality inspection ensures 100% compliances of safety measures, specified pressure rating and each valve assures tigh shut-off.
Applications: –
Features: –
- No pins between shaft and disk connection; this eliminates the possibility of electrolytic corrosion
- Self lubricated plain bearings for both drive and non-drive end shaft ensures minimum bearing friction torque
- Extended stem design for insulated line.
- Excellent adaptability for actuator operation through standardized ISO 5211 flange mounting dimensions for actuator fitment.
Actuator Specification : –
LEHRY Cable float switch effectively monitor and controls water/liquid level in the Overhead tanks, Underground tanks, Sumps, Wells etc. It prevents Overhead tank from overflow and also over pumping of Sump, Well etc. It allows the user to be free from the botheration of switching the electric pump ON / OFF and makes water / liquid level available round the clock.

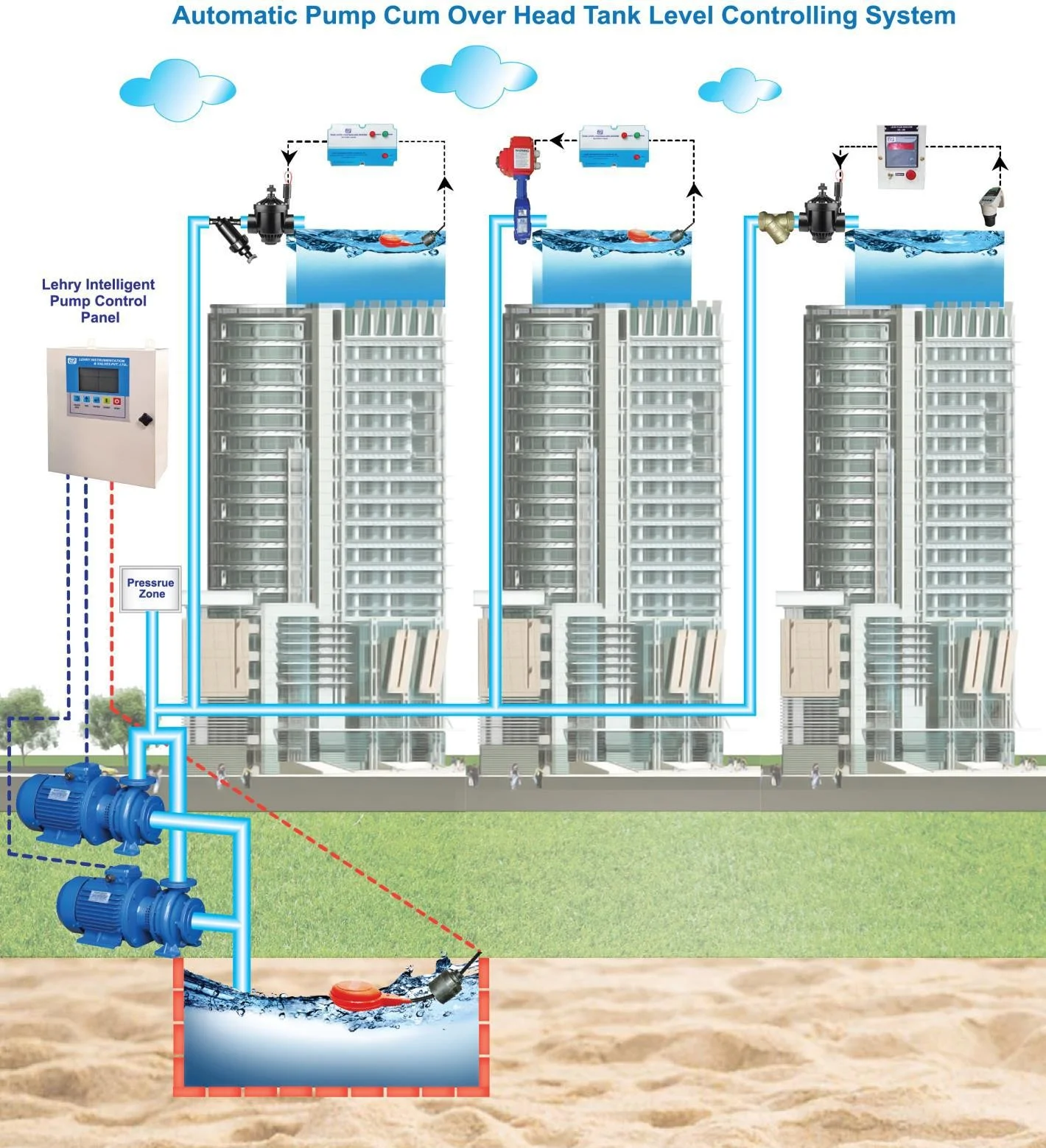

LEHRY OHT BENEFITS :
LEHRY OHT BENEFITS :
FEATURES :-

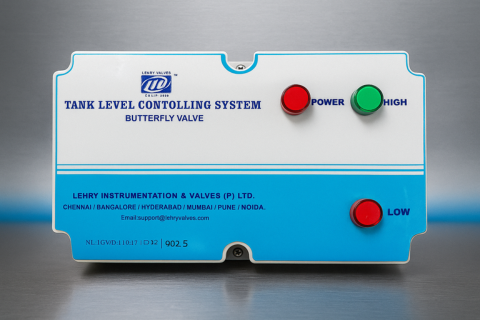

LEHRY make cotrol box for OHT System
